Smooth Operator…New Soft Close Johnson Hardware for Heavy Bypass Doors
Perfect for High-Traffic Residential and Commercial Applications
Photo caption: Now opening and closing heavy doors is a breeze with Johnson's Soft-Close 200SDSC bypass door hardware.
For high-end, heavy-traffic residential and commercial projects, oversized solid-core wood or laminated veneer doors are often specified for strength, durability and sound dampening. Now, these door installations benefit from the application of Johnson Hardware’s 2066 soft-close for heavy-duty doors, newly available with the 200SDSC sliding bypass door hardware line.
The 200SDSC is among the highest-quality sliding door hardware systems available for residential- or commercial-grade applications offered in two-, three- or four-door configurations.
This bypass hardware is ideal for heavy architectural door installations demanding extended life, smooth trouble-free operation and finest-quality performance. The versatile 200SDSC line is available in pre-configured sets for standard size doors or as a component for custom door applications.
Directions of travel
Enabling door movement to gradually slow when approaching jambs for a quiet and secure closure, 2066 Soft-Close Kit can be obtained in bidirectional or single-direction hardware sets. Bidirectional hardware sets are used for applications where each door soft operates in either direction, and require a door minimum of 28 inches wide. Single-direction hardware sets are intended for doors a minimum of 20 inches wide to softly operate in a single direction. The top-hung hardware does not require a bottom guide track. Each door slides the distance of its own width.

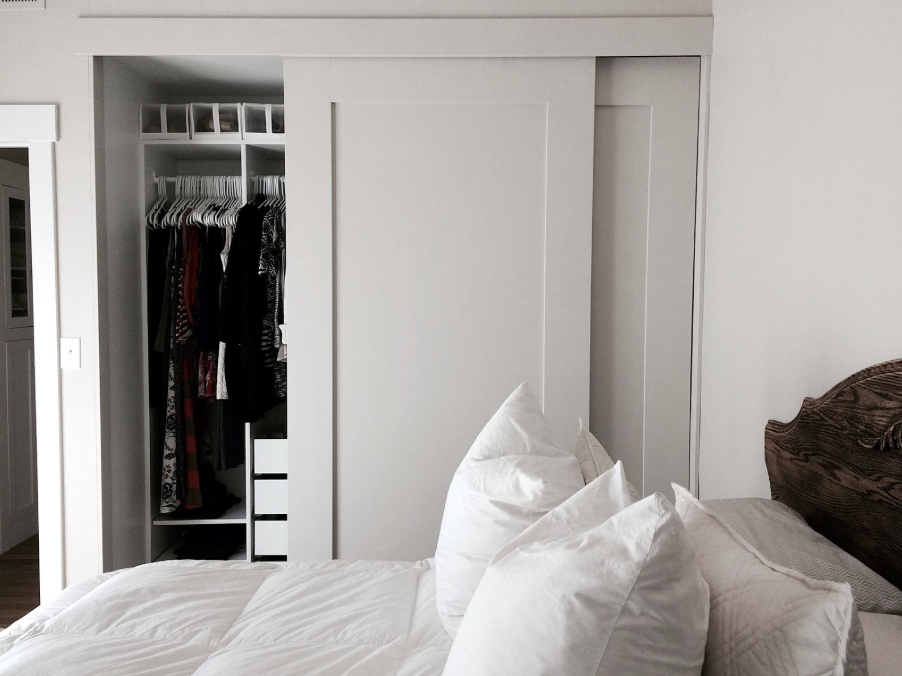

Photo caption: Johnson’s soft-operating 200SDSC sliding bypass door hardware set is well-suited to upscale residential or commercial applications.
The hardware can be used with doors weighing up to a maximum 330 pounds and 1-1/8 inches thick. Among the leading features are nylon-encapsulated ball bearing wheels that roll smoothly and quietly. Due to the tripod rocker design, equal weight is carried by all wheels.
A height-adjustable hanger bolt ensures exacting door alignment. If removal of doors is ever required, a quick-release locking tab allows their removal without having to drop the track.
The precision-extruded, jump-proof I-beam track is available in up to16-foot lengths. Track extrusions enable a variety of door thicknesses. Heavy-duty track stops clamp securely to the track profile, to limit door travel at the desired position.
The 201 Door Guide Set features three floor-mounted door guide posts keeping doors in place and divisible for a variety of door thicknesses. Posts can be topped by molded nylon caps for quiet, smooth operation. Guide plates’ mounting holes enable precise door positioning.
For more information, see the 200SDSC Soft-Operating Sliding Bypass Hardware webpage, visit www.johnsonhardware.com, or call 574-293-5664.
Since 1958, Johnson Hardware has been producing high quality sliding, folding and pocket door hardware that is made in the USA for residential and light commercial applications. Celebrating 68 years of precision engineering, the Company protects the health and safety of its employees and surrounding communities and ecosystems. It uses natural resources including raw materials, energy and water as efficiently as possible. Follow the company on Instagram, X, Pinterest, and Facebook. ###
